Aluminum Bodies and Trailers

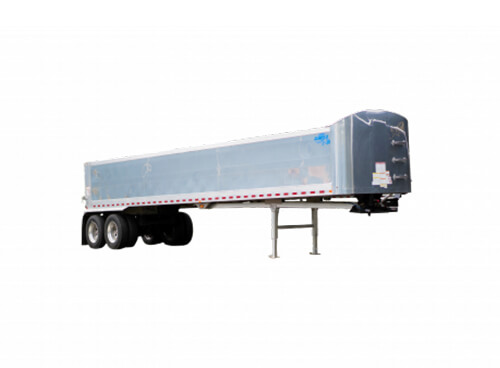

Clement, builder of the most extensive line of steel dump trailers available, also has a line of aluminum products. Aluminum bodies
for trucks and pups are illustrated. The addition of aluminum is consistent with Clement's commitment to the professional
hauler "of providing the utmost in alternatives for profitable bulk transporting".
Illustrated are 18 foot, 24 cubic yard aluminum dump and pup bodies with 60 inch sides of .160 aluminum and 1/4 inch aluminum
floors. The design features extruded top rail and dirt shedding bottom rail, 4 inch channel vertical braces and cross members. The
inverted telescopic hoists are trunnion mounted and eliminate the need for a doghouse, thus enhancing material flow out of the bodies.
The pup body is mounted on a six spring tridum with an air lift, steerable, front axle. In certain areas of the country these vehicles
can legally gross 107,500 pounds with net payloads of 73,000 pounds.
